| 브랜드 이름: | LIKEE |
| 모델 번호: | LKC500 |

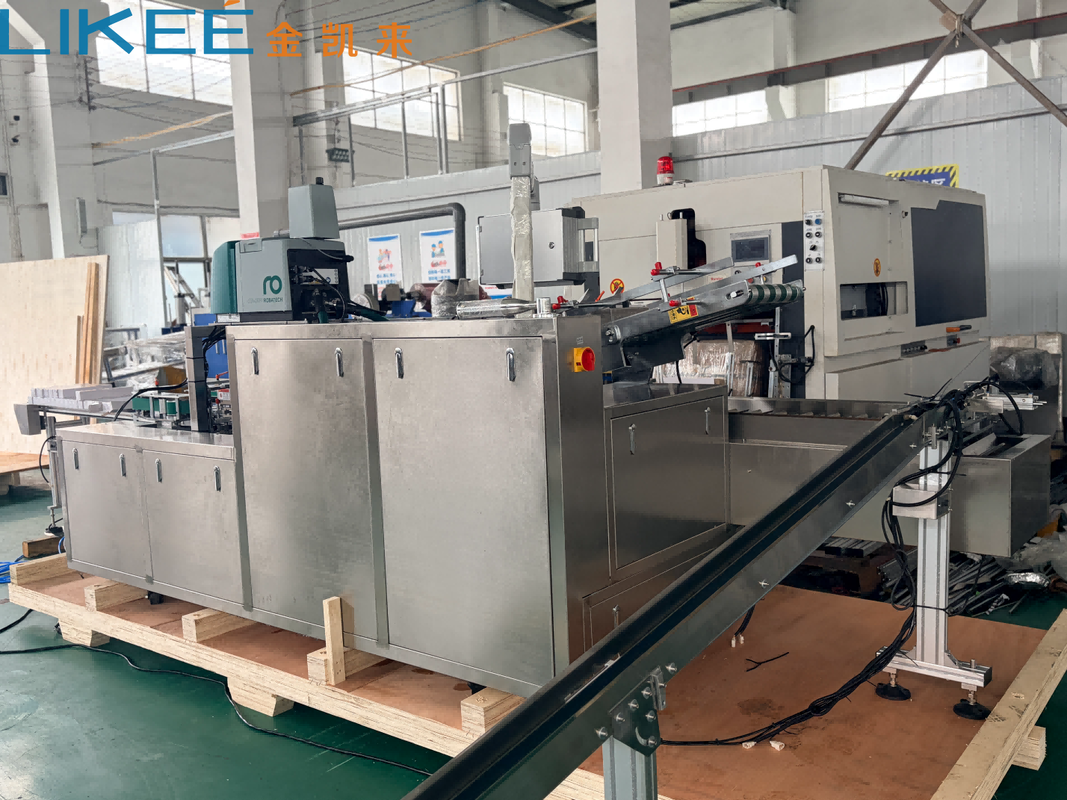

This Automatic Cartoning Machine (380V, 5KW) is engineered for reliable and safe packaging of products such as aluminum foil small rolls. Designed with operator safety and equipment protection as top priorities, the machine features a main drive motor with overload protection and an optional flip-top safety cover.
The overload protection system automatically shuts down the motor in case of excessive torque or jamming, preventing damage to mechanical components and reducing downtime. The flip-top safety cover provides full enclosure of moving parts during operation while allowing easy access for cleaning, maintenance, and changeover.
Despite its focus on safety, the machine does not compromise on performance. It integrates automatic feeding, box opening, product loading, glue spraying, box sealing, and waste rejection into one streamlined process. The PLC-controlled system with touchscreen HMI ensures precise, user-friendly operation.
| Parameter | Specification |
|---|---|
| Rated Voltage | 380V, 3-Phase AC, 50Hz |
| Motor Power | 5 KW |
| Overload Protection | Yes (main drive motor) |
| Safety Cover | Flip-top type (optional), transparent |
| Encasing Speed | 30-60 boxes/min |
| Box Quality Requirement | 300g/m³ or 400g/m³ White Cardboard |
| Box Dimension Range (L×W×H) | (200~460) × (30~60) × (30~60) mm |
| Working Pressure | 0.6-0.9 Mpa |
| Air Consumption | < 5 m³/h |
| Machine Dimension (L×W×H) | 4100 × 1600 × 1900 mm |
| Machine Weight | 1800 KG |
| Noise at Work | < 80 dB |
Overload protection prevents damage to the main drive motor and transmission system if a jam occurs (e.g., a deformed carton or product misalignment). It automatically cuts power, reducing repair costs and unplanned downtime.
Unlike fixed enclosures, the flip-top cover allows quick, tool-free access to the cartoning station and conveyor area. This simplifies daily cleaning, tooling changeover, and troubleshooting while maintaining full protection during high-speed operation.
Yes. The optional flip-top cover can be equipped with an interlock switch. When the cover is opened during operation, the machine automatically stops, ensuring maximum operator safety.
No. The overload relay is calibrated to allow normal operating loads. It only activates under abnormal conditions (e.g., jamming or excessive resistance). After clearing the issue, production can be quickly resumed by resetting the system via the touchscreen.
The machine works with 300g/m³ or 400g/m³ white cardboard. The carton size must be within L(200-460) × W(30-60) × H(30-60) mm.
Yes. Changeover is completed by adjusting tooling and templates. The flip-top safety cover provides convenient access for these adjustments, typically taking 15-30 minutes.
A 380V, three-phase, 50Hz AC power supply. The total installed power is 5KW.
